| Mechanical Specification | |
| Overall diameter (mm) | 260 |
| Bolt circle diameter (mm) | 243 |
| Baffle cutout diameter (mm) | 227 |
| Depth (mm) | 122 |
| Net weight (kg) | 3.35 |
| Electrical Specification | |
| Nominal diameter (Inch) | 10 |
| Nominal impedance (Ohms) | 8 |
| DC resistance ( Ohms) | 5.5 |
| Nominal power handling (W) | 400 |
| Program power ( W) | 800 |
| Sensitivity (dB)(1w/1m) | 100 |
| Frequency range (Hz) | 50~3.5K |
| Voice coil diameter (mm) | 75.5 |
| Voice coil material | 0.36/EICCAW |
| Former material | TIL |
| Magnetic gap depth (mm) | 8 |
| Magnet (mm) | N35M,∮73.6x∮4.95x9mm |
| Flux density (T) | 1 |
| Thiele& Small parameters | |
| Fs (Hz) | 50 |
| Re (Ohms) | 5.5 |
| Qes | 0.24 |
| Qms | 12.8 |
| Qts | 0.24 |
| Vas (L) | 35 |
| Sd (m2) | 3.46 |
| Mms (gr) | 48 |
| Bl (N/A) | 18.3 |
| Le@1K (mH) | 1.27 |
| Mmd (gr) | 44.4 |
| Cms (mm/N) | 0.2 |
| Rms (kg/s) | 12.8 |

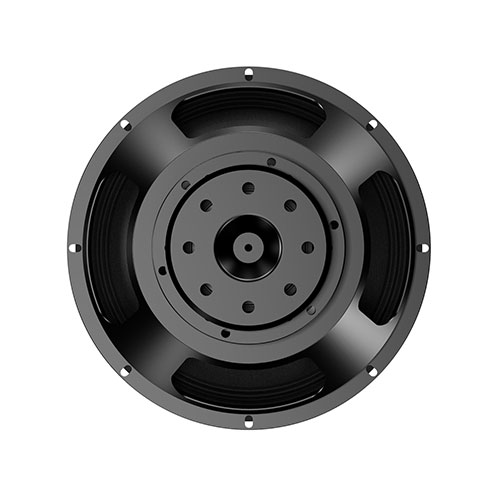

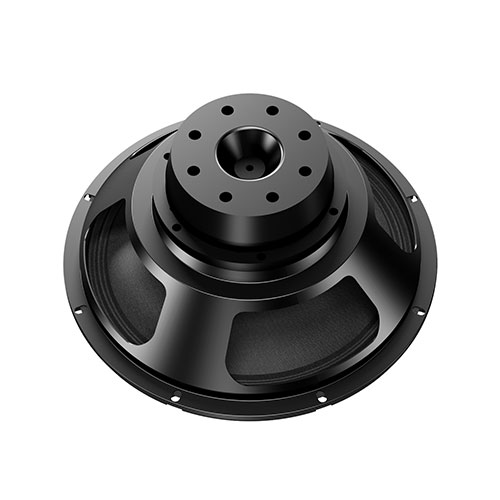

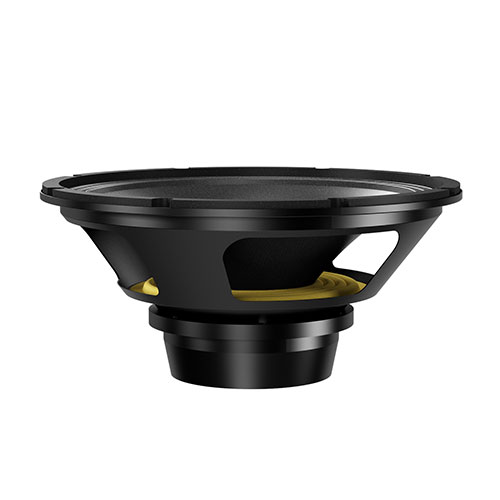

NEO Woofer
L250048-8B（NEO）
Specification
