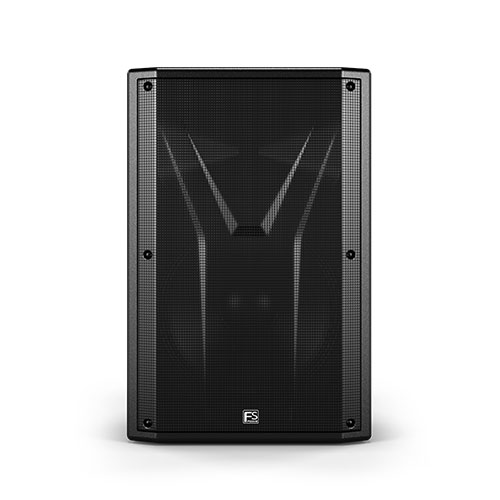

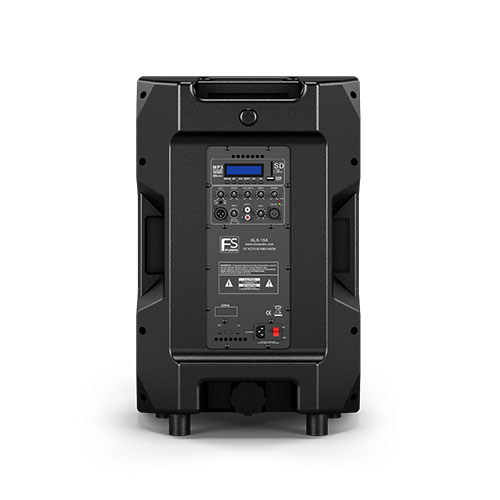

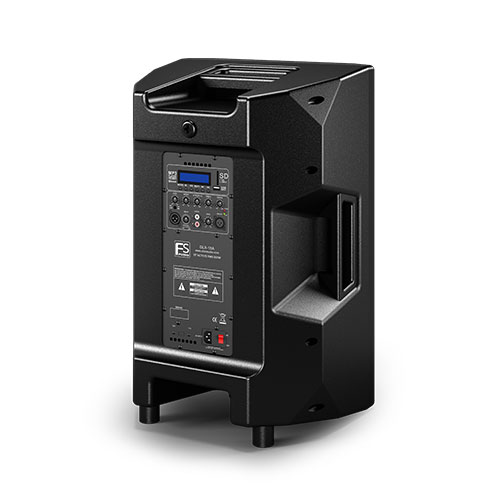

15 Inch Active Full Range Speaker

GLX Series GLX-15A

Features

1.With Echo function
2.Max SPL 125dB
3.Dust proof grill
4.Durable and light enclosure

Specification
Specification
Components 15" woofer+1.75" driver
Frequency Response (Hz) 45-20k
Impedance (Ohms) 4
RMS Power(W) 500
Program Power(W) 1000
Dispersion (@6dB) H90°× V45°
Sensitivity (dB)(1w/1m) 99
Max SPL(dB) 125
X-over(Hz) 2500
Connection XLR, RCA
Product Weight (kg) 18
Gross Weight (kg) 20.9
Product Size (cm) 45x37x71
Shipping Carton Size (cm) 51.5x43x76.5
Passive/Active Active
Amplifier Module
Output Power(EIA test standard,100HZ 1%THD) 2x350W/4 Ohms
S/N 95dB
Damping Factor 500@100HZ
Protection over voltage protection up to 264V AC, overload output protection, clip limiter,power on/off,mute.
Drawing
